Tired of purchasing different connectors for different devices in your factory? Jiancha DF series circular aviation connectors are here to solve this problem. With full specifications covering small signal to large power transmission, stable performance and easy installation, it can meet all your conventional industrial connection demands in one stop.
· Why are these connectors important in industry?
· Key features to be identified
· Typical industrial applications
· How to choose the appropriate connector
· Connector Comparison Table
· Tips for maintaining long-term performance
· FAQ
Most industrial factories have various devices with different connection demands, which means you need to purchase, stock and manage different types of connectors, bringing extra cost and management trouble. Meanwhile, poor-quality connectors can cause loose connection, downtime and maintenance cost. Jiancha DF series solves this perfectly: one series covers all your needs, reducing your management cost while ensuring stable connection.

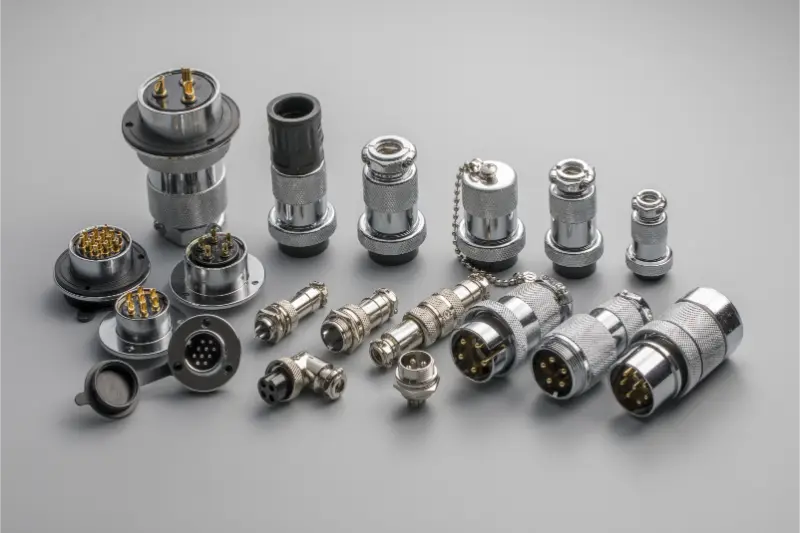

1. Full model coverage: DF12–DF60 full-size shell, 2–15 pins, 3A–50A current, covering all conventional connection demands
2. High-strength zinc alloy shell, impact-resistant, vibration-resistant and corrosion-resistant
3. Solid gold/silver plated copper contacts, excellent conductivity, low contact resistance and temperature rise
4. Precision thread locking structure, anti-misplug design, preventing loosening and wrong insertion
5. Multiple installation options: hex nut, 2-hole flange, 4-hole flange, adapting to various installation scenarios
6. Full-process quality inspection, every product passes strict test before delivery, consistent performance
· Industrial Automation: Suitable for production lines, PLC cabinets, sensors and conveyors, meeting various connection needs.
· CNC Machine Tools: Applied in CNC lathes, machining centers and cutting devices, ensuring stable signal and power transmission.
· Intelligent Equipment: Compatible with industrial robots, intelligent storage and testing devices, adapting to different connection demands.
· Instrument & General Machinery: Adapted to industrial instruments, medical devices, elevators and packaging machines, covering small signal transmission.
With full specifications, you can easily pick the right DF connector for your device:
· Determine the current and voltage demand: small signal devices can choose DF12/16/20, large power devices can choose DF40/60
· Assess the environmental conditions to confirm the protection and material demand
· Choose the thread locking structure to ensure anti-loosening performance for vibration scenarios
· Verify the pin count to match your signal and power transmission needs
· Confirm the installation type to match your device installation space
Gaoshiwei has full stock of all DF specifications, we can help you pick the right models for all your devices, contact our engineers for details.
| Item | Traditional multi-type connectors | Jiancha DF series connectors |
| Specification | Need to purchase multiple types for different devices | One series covers all demands, one-stop procurement |
| Structure | Simple locking, easy loosening | Thread locking, anti-misplug, anti-vibration and anti-loosening |
| Electrical performance | Inconsistent performance of different products | Uniform high quality, stable conductive performance for all models |
| Inventory cost | High inventory pressure for multiple products | Simplified inventory, reducing your management cost |
· Regularly clean the dust and impurities on the connector interfaces to keep them clean.
· Check the thread locking status periodically in vibration working environments to ensure reliable connection.
· Replace the connectors in time after reaching the rated plugging life to avoid performance degradation.
· Keep the connectors away from strong corrosive substances during daily storage.
· Avoid violent plugging and unplugging during operation to protect the internal contact structure.
Q1: Can DF series really meet the connection needs of all my different devices?
A1: Absolutely. DF series covers full specifications from small signal to large power, it can perfectly meet the connection needs of your sensors, instruments, robots, large power devices and other different devices, you can purchase all you need in one stop.
Q2: Do you have all DF specifications in stock? How fast can you deliver?
A2: Yes, we have full stock of all DF series conventional specifications, we can arrange delivery immediately after your order, which can greatly shorten your procurement cycle.
For industrial users who have various devices and need a simple, cost-effective connection solution, Jiancha DF series is your best choice. It helps you simplify procurement and inventory, reduce management cost, and ensure stable connection for all your devices. With full stock and fast delivery, it can quickly meet your needs.
If you are tired of managing multiple types of connectors, contact us today! We can provide you with a one-stop connection solution for all your devices, helping you save cost and improve efficiency.
