Gaoshiwei is one of the famous China Metal Round Waterproof Connector manufacturers and suppliers. Our factory specializes in manufacturing of Metal Round Waterproof Connector. Every request from customers is being replied within 24 hours.

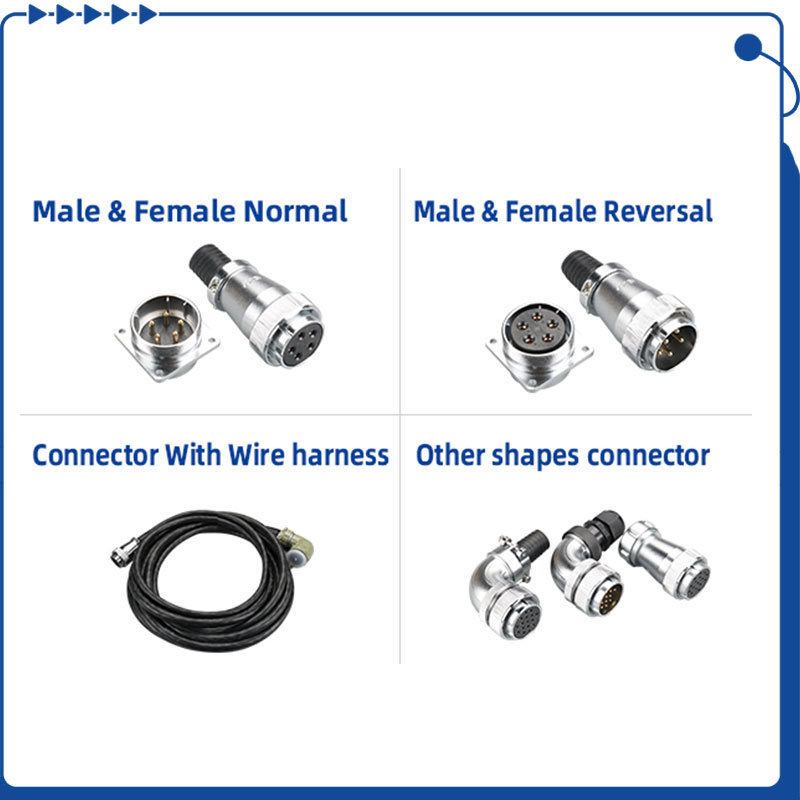

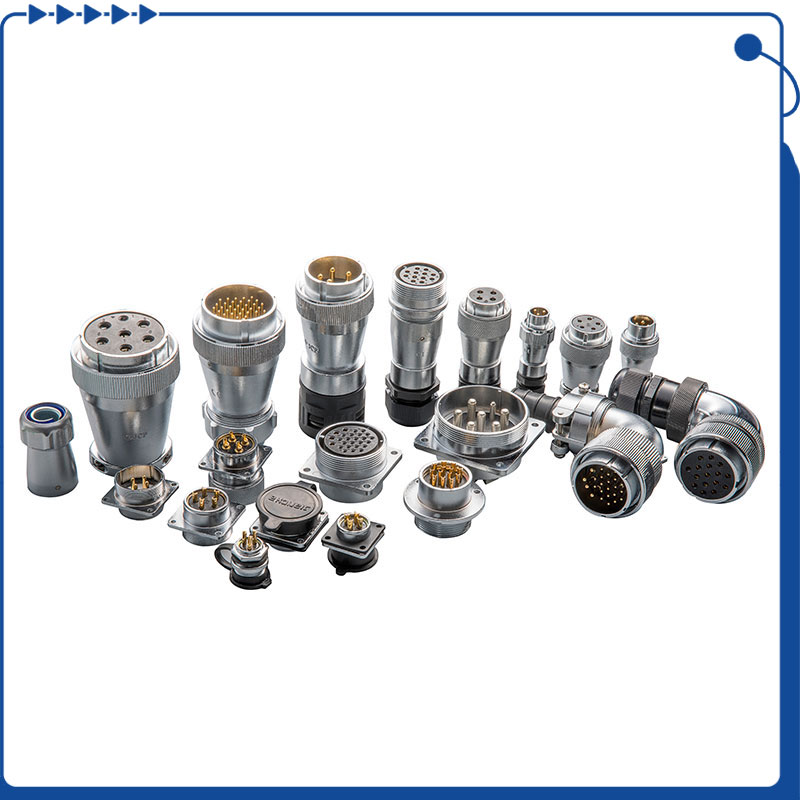

WS16/WS20/WS24/WS28/WS32/WS40/WS48/WS55 Series with multi-core(2-86core) design to fit with different industrial needs within below key features:
△The shell is made of Zine Alloy with chrome plating, compressive, anti-explosive and anti-deformation properties.
△Gold-plated contacts, high-strength corrosion resistance and electrical conductivity,can electively cope with changes in emperature rise that caused by current;
△Threaded coupling is easy to operate and easy to install;
△Current rating: 10A/25A/50A/100A
| shell material | Zinc alloy with chrome plating |
| Insert material | PBT, max temperature 260 ℃ |
| Contact material | Brass with gold or sliver plating |
| waterproofing grade | IP67 |
| quality certification | CE ISO9001 |
| temperature range | /-45°C~+125°C |
| Coupling | Threaded |
| Mating cycle | 500 |
